Johdanto:

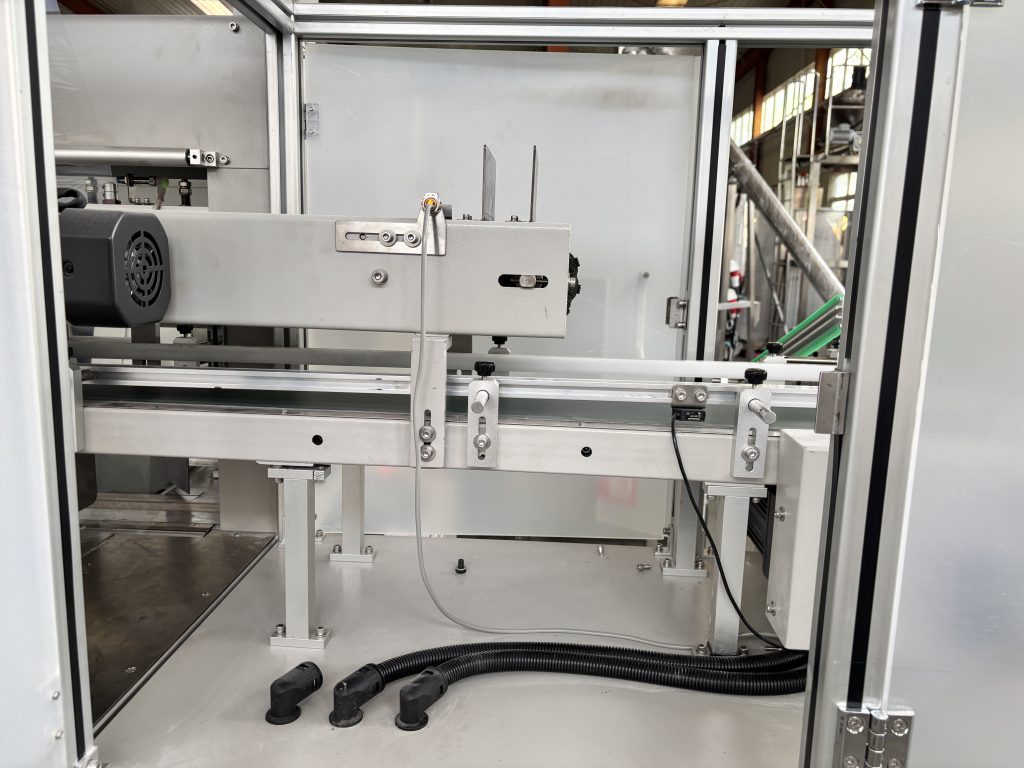

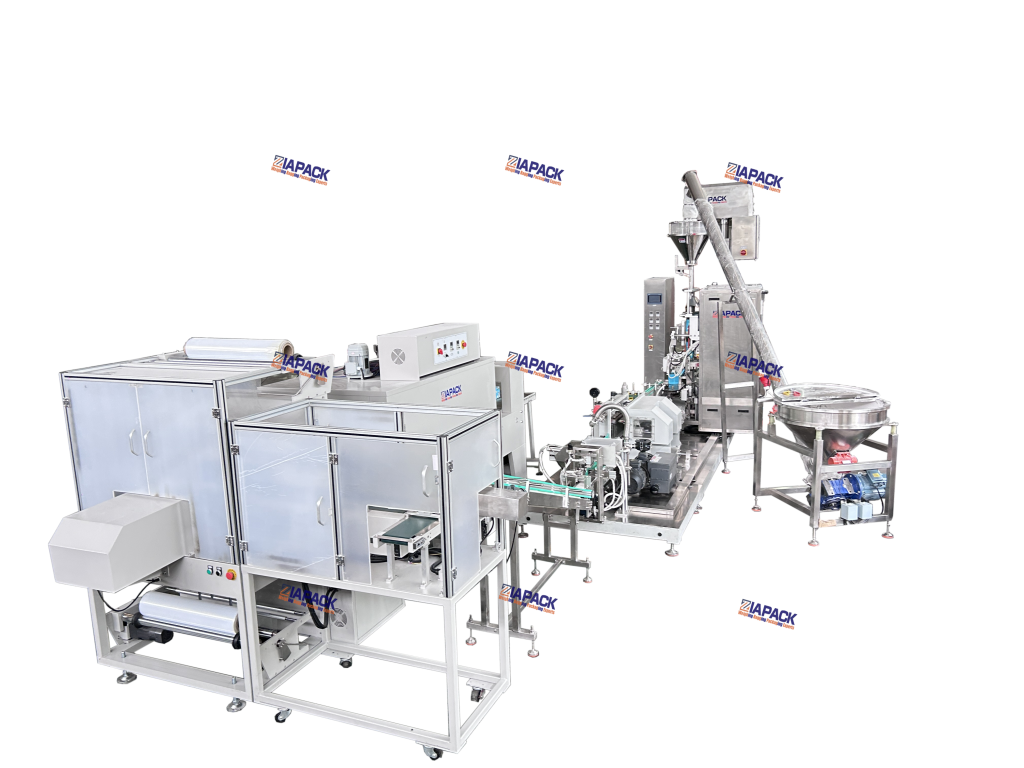

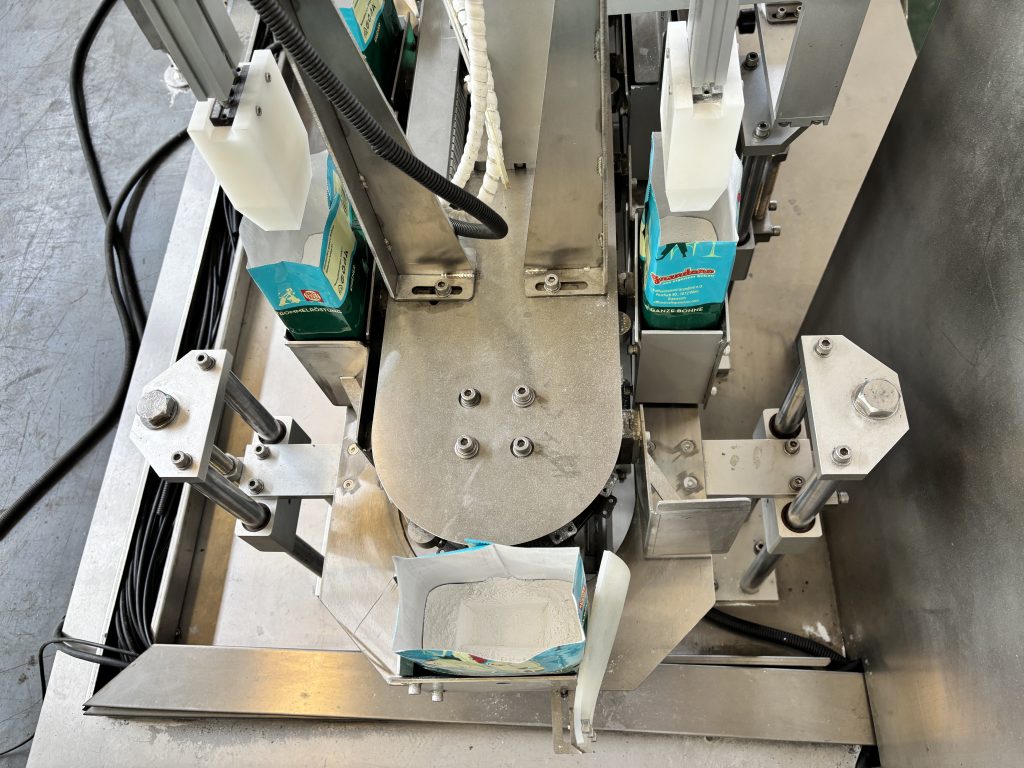

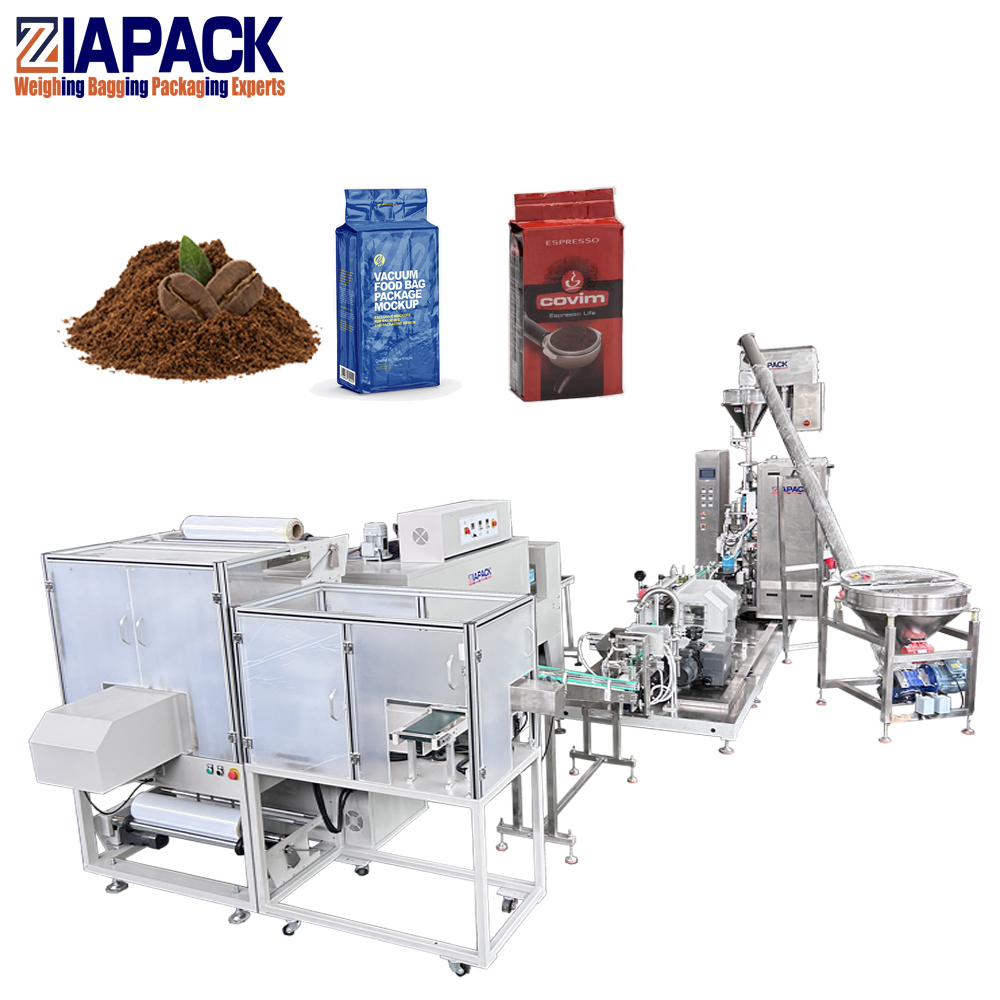

This machine including one set ZK2000 vacuum elevator , one set ZL520 vertical bag making packing and sealing machine .one set ZLX2000 four buckets weighing machine ,One set ZL-100V Double vacuum chamber packing machine,one set counting and film wrapping machine . The whole line are widely using for packing food pharmacy chemical and other product in powder or small granule. Like coffee powder ,yeast powder wheat flour and so on .The whole machine adopting inside pumping to vacuum product .The vacuum degree is very high and packing speed is very high can be reach 5-8bag/min depending on different bag dimension .The finished product is very nice and have a long shelf life.
Tekniset parametrit:
Model :ZL-100V
| Pakkausnopeus | 5-8 bag/min |
| Laukun mitat | Bag frot width 60-120mm, Bag side width 40-75mm, Bag height Max 100-150mm |
| Koneen ulottuvuus | 5500*3800*4080mm |
| teho | 22kw,380V 50Hz 3 phrase |
| Air supply | 0.8m³/min 8Bar |
| Reel outer diameter | 400mm |
| Core inner diameter | 75mm |
